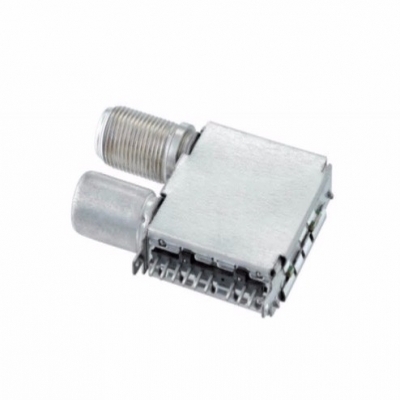

Product Satcom tracking module DVB-S/S2/S2X DVB-C DVB-T/T2 ATSC COMBO TUNERS SP630/SP636/SP6670/SP680 FULL-NIM Application:SP630/SP636/SP6670/SP680 详细信息 下载 Models：SP630/ SP636/SP6670/SP680Features：Frequency range:47~1002MHzIF frequency: Low IF 4~8MHzInput impedance:75ohmIF output bandwidth:1.7-10MHzAdjacent channel rejection:[-60 ~ -66dBc]Passive loop through outputIIC bus interfaceParallel and serial data Main Products: Model Namechipset solutionChassisSP630MAXLINEAR chip solution:MXL603VERTICAL/HORIZONTALSP636MAXLINEAR chip solution:MXL6031 DVBC INPUT& 1 DVBT INPUTVERTICAL/HORIZONTALSP6670NXP chip solution:18250BHNVERTICAL/HORIZONTALSP680MAXLINEAR chip solution: MXL608VERTICAL/HORIZONTAL 没有了 下一条FTT1603/FTT1608
